电动升降液压固定平台,非选BISHAMON不可,超高寿命!高安全性!



重量型電動油壓升降平台

  • 單叉式
  • 雙叉式

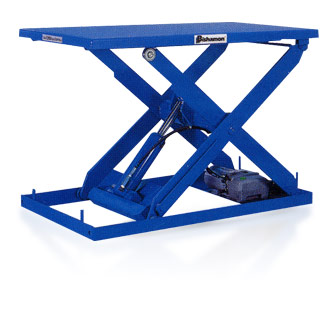

單叉式

重量型電動油壓升降平台

重量型電動油壓升降平台

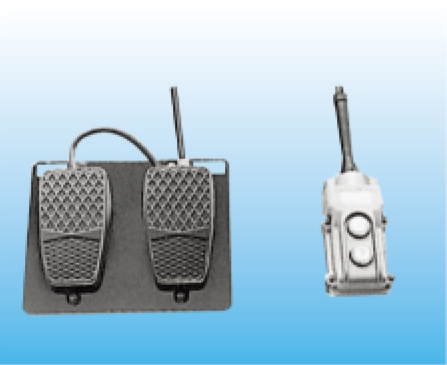

升降控制
可選配按鈕或腳踏式
機型 承載重量
(kg)
揚程
(mm)
台面尺寸
(mm)
最低高度
(mm)
最高高度
(mm)
機台重量
(kgs.)
X10410 1,000 600 400x1,000 155 755 163(32)
X10413 1,000 845 400x1,340 155 1,000 210(32)
X10415 1,000 950 400x1,500 205 1,155 248(32)
NX-100NA 1,000 400 640x850 155 555 161
NX-100NB 1,000 600 640x1,000 155 755 175
NX-100NC 1,000 845 640x1,340 155 1,000 225
NX-100ND 1,000 950 640x1,500 205 1,155 248
NX-100NE 1,000 1305 640x1,800 205 1510 313
NX-100WA 1,000 400 780X850 155 555 180
NX-100WB 1,000 600 780X1,000 155 755 194
NX-100WC 1,000 845 780X1,340 155 1,000 244
NX-100WD 1,000 950 780X1,500 205 1,155 269
NX-100WE 1,000 1305 780X1,800 205 1,510 335
NX100WCY 1,000 845 1,000X1,340 155 1,000 255
NX100WDY 1,000 950 1,000X1,500 205 1,155 281
NX100WEY 1,000 1,305 1,000X2,000 205 1,510 357
X11224 1,000 1,305 1,200X2,400 207 1,512 500
X20713 2,000 800 700x1,300 200 1,000 340
X20715 2,000 1,000 700x1,500 215 1,215 378
X21013 2,000 800 1,000x1,300 200 1,000 388
X21015 2,000 1,000 1,000x1,500 215 1,215 428
X21020 2,000 1,250 1,000x2,000 250 1,500 515
X21224 2,000 1,250 1,200x2,400 252 1,502 620
X30713 3,000 800 700x1,300 235 1,035 383
X30715 3,000 1,000 700x1,500 245 1,245 421
X31013 3,000 800 1,000x1,300 235 1,035 435
X31015 3,000 1,000 1,000x1,500 245 1,245 482
X31020 3,000 1,250 1,000x2,000 280 1,530 573
X31224 3,000 1,250 1,200x2,400 280 1,530 670
